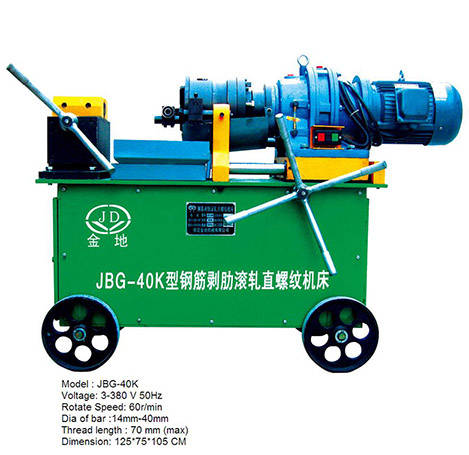

parallel thread rolling machine
Gross weight:450KG
electric motor power:4KW
work voltage : 3-380V 50HZ
Dimension:1100*450*1000mm
Output rotate speed of Reducer: 62 R.P.M
Steel bar standard: 14,16,18,20,22,25,28,32,36,40
Thread pitch:2.5 3.0 3.5
Customer's special demand is available.
1) Roll stamping thread after steel bar rib peeling, with good shape of thread, high precision and conformed diameter size
2) Processing parallel thread for ribbed rebar 16mm - 40mm
3) Rolling wheel has long service period, low additive cost of connector
4) Easy to adjust for rolling steel bars in different specifications, adjustment can be made without loosing rolling head, with same given screw distances
